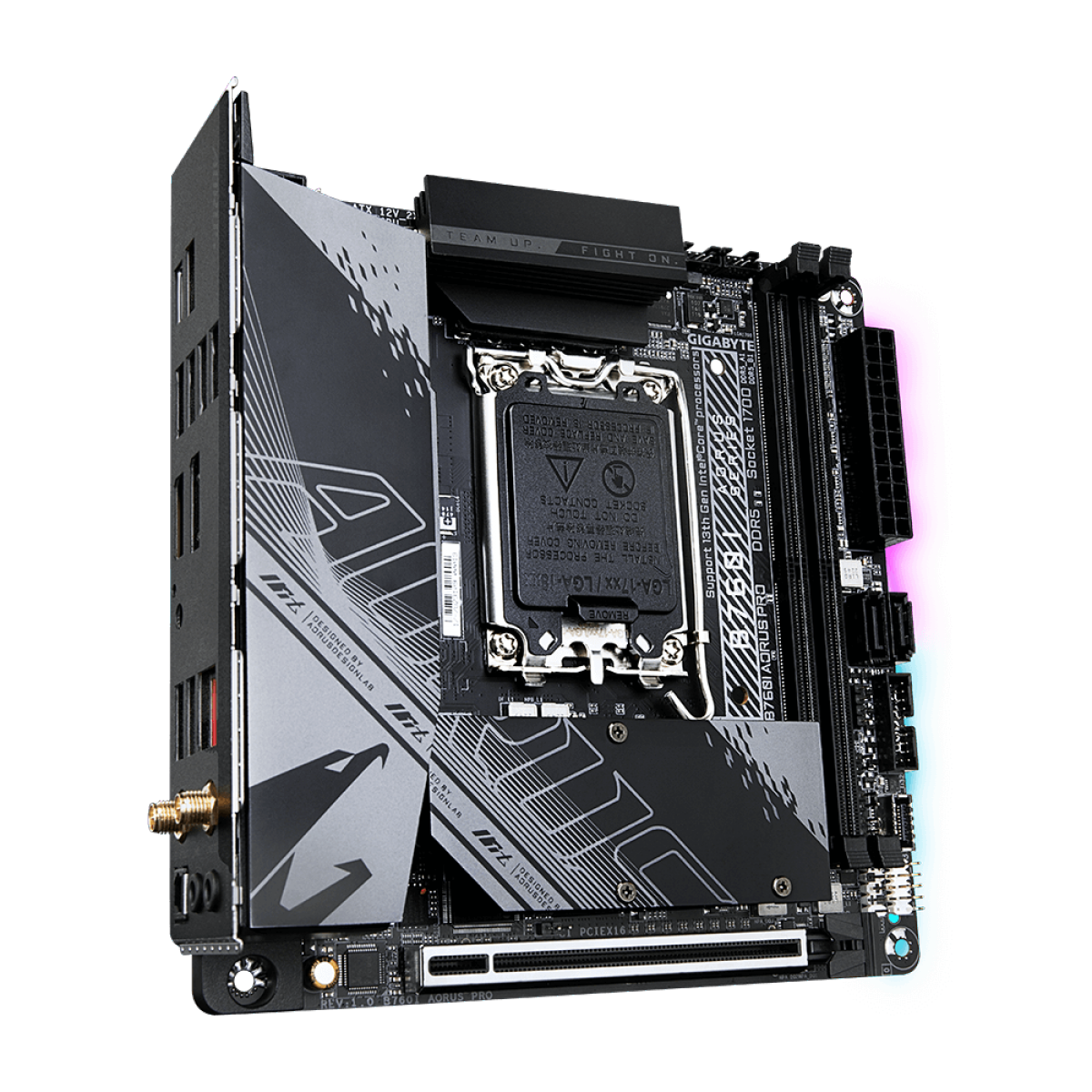

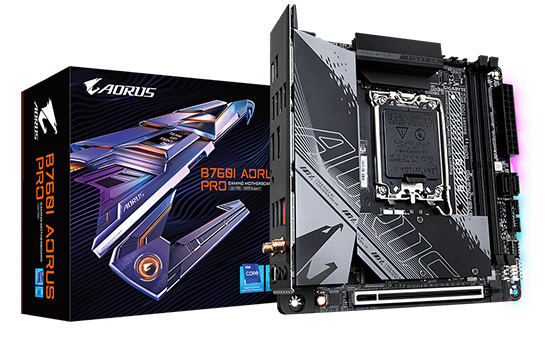

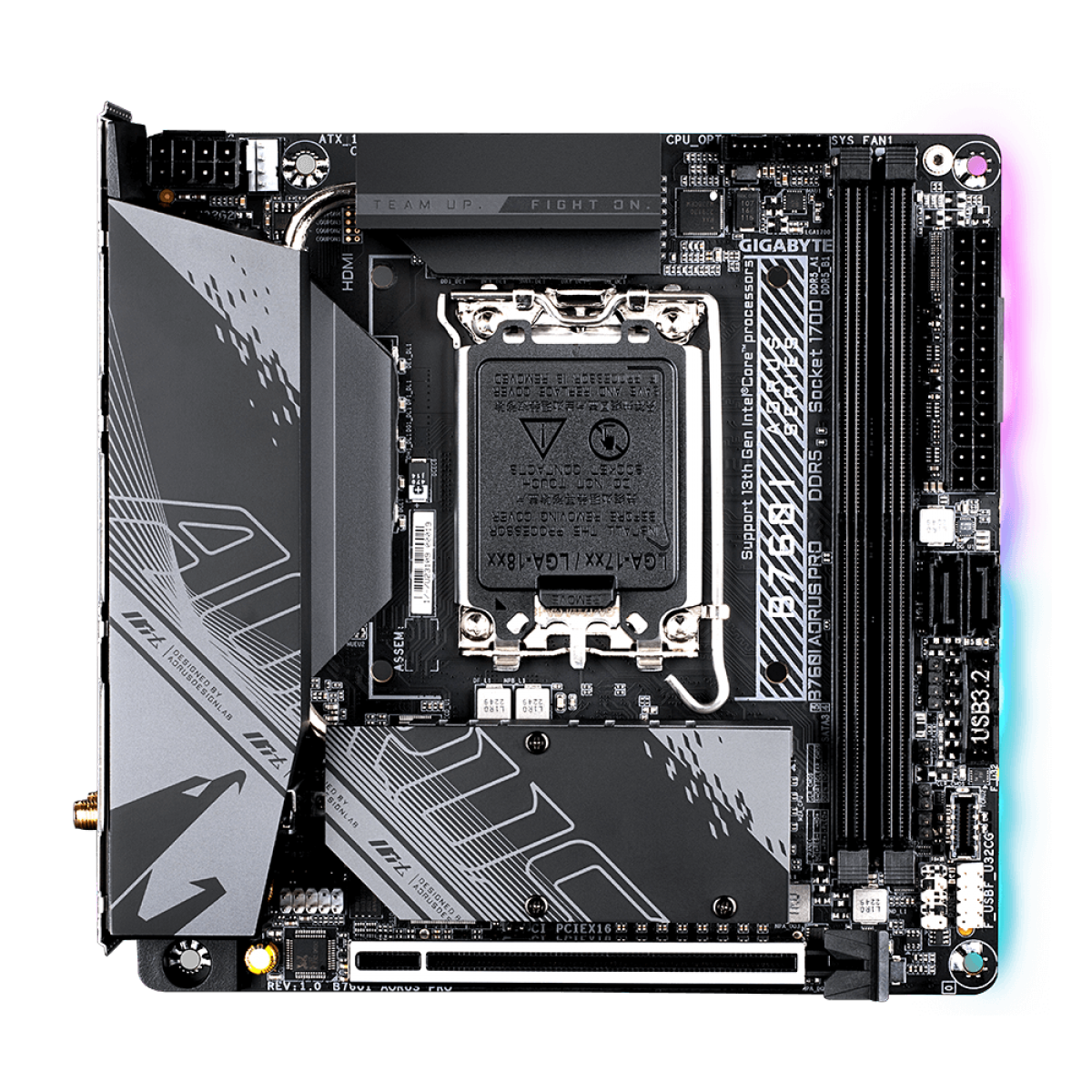

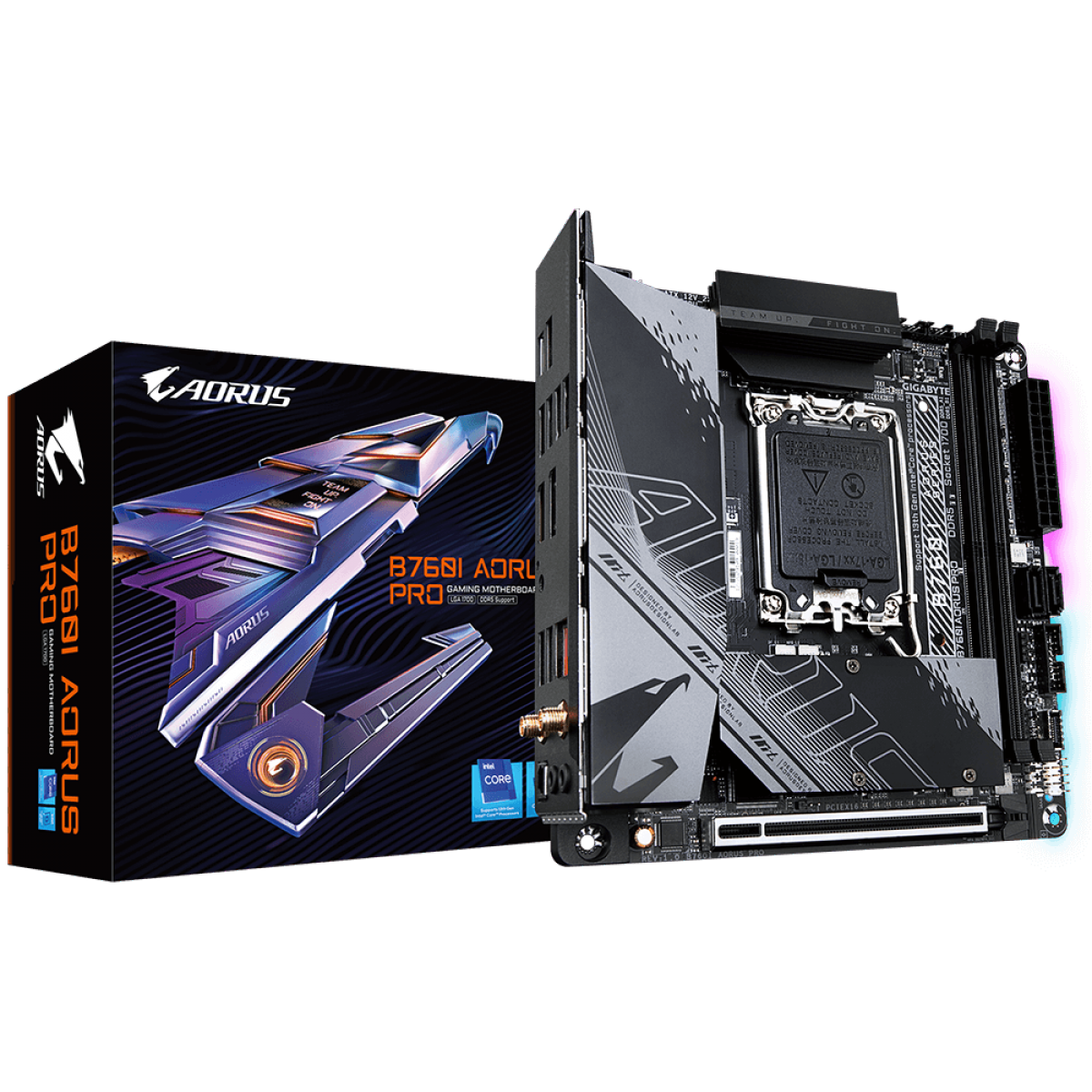

Placa Mãe Gigabyte B760I Aorus Pro, WIFI, Chipset B760, Intel LGA 1700, M-ITX, DDR5

Marca:
Gigabyte

Modelo:
B760I AORUS PRO (rev. 1.x)

CPU:
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.

Chipset:
Intel® B760 Express Chipset

Memória:
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Gráficos Onboard:
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

Áudio:
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

LAN:
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module:
Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)

Slots de Expansão:
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Interface de Armazenamento:
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for SATA storage devices

USB:
Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel

Conectores Internos I/O:
1 x conector de alimentação principal ATX de 24 pinos
1 x conector de alimentação ATX 12V de 8 pinos
1 x cabeçalho do ventilador da CPU
1 x ventilador de cpu/cabeçalho de bomba de resfriamento de água
1 x cabeçalho do ventilador do sistema
1 x cabeçalho de faixa LED endereçável
1 x cabeçalho de faixa LED RGB
2 x conectores M.2 soquete 3
2 x conectores SATA 6 Gb/s
1 x cabeçalho do painel frontal
1 x cabeçalho de áudio do painel frontal
1 x cabeçalho de alto-falante
1 x conector USB Type-C ® , com suporte para USB 3.2 Gen 1
1 x conector USB 3.2 Gen 1
1 x conector USB 2.0/1.1
1 x jumper de redefinição
1 x jumper CMOS claro
1 x cabeçalho de intrusão de chassi

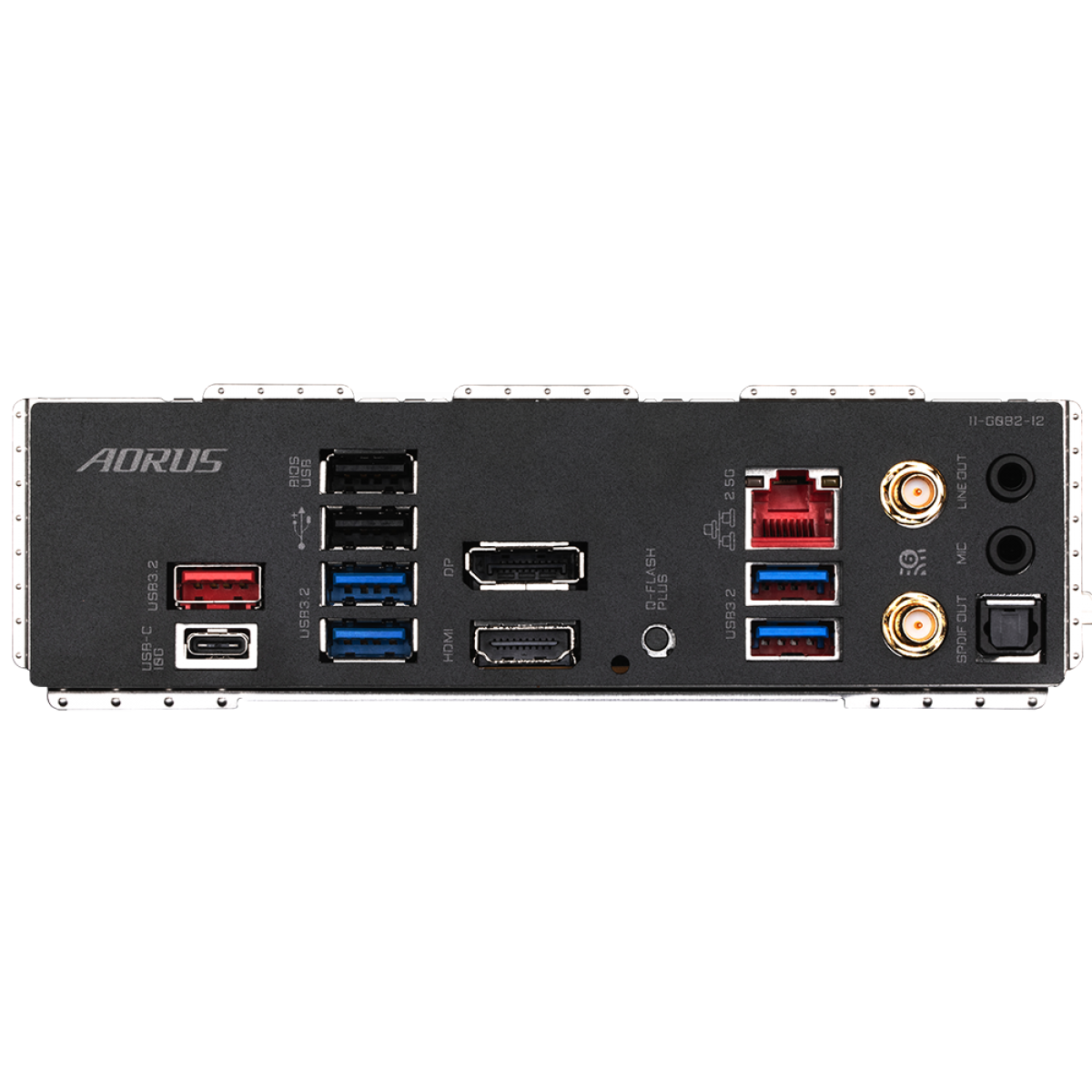

Conectores Painel Traseiro:
1 x porta USB Type-C® , com suporte para USB 3.2 Gen 2
1 x porta USB 3.2 Gen 2 Tipo A (vermelha)
4 portas USB 3.2 Gen 1
2 portas USB 2.0/1.1
1 x porta de exibição
1 x porta HDMI
1 x botão Q-Flash Plus
1 porta RJ-45
2 x conectores de antena SMA (2T2R)
1 x conector de saída óptica S/PDIF
2 x tomadas de áudio

Controlador E/S:
Chip controlador de E/S iTE

Monitoramento H/W:
Detecção de tensão
Detecção de temperatura
Detecção de velocidade do ventilador
Detecção de taxa de fluxo de resfriamento de água
Aviso de falha do ventilador
Controle de velocidade do ventilador
* O suporte da função de controle de velocidade do ventilador (bomba) dependerá do ventilador (bomba) que você instalar.

BIOS:
1 flash de 256 Mbits
Uso de BIOS UEFI AMI licenciado
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Exclusivas:
Suporte para GIGABYTE Control Center (GCC)
* Os aplicativos disponíveis no GCC podem variar de acordo com o modelo da placa-mãe. As funções suportadas de cada aplicativo também podem variar dependendo das especificações da placa-mãe.
Suporte para Q Flash
Suporte para Q-Flash Plus

Fator de forma:
Fator de forma Mini-ITX; 17,0 cm x 17,0 cm
